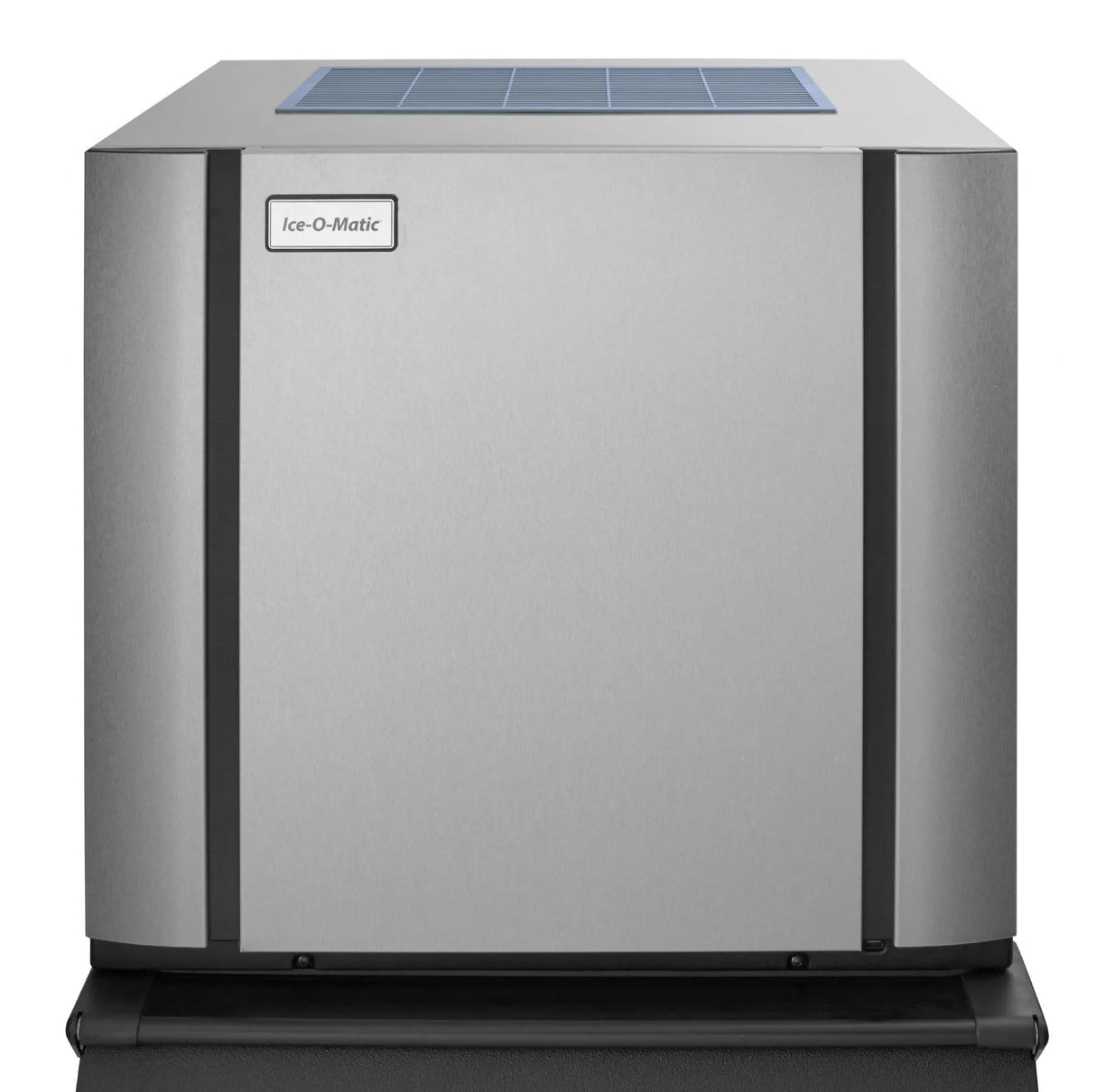

FA002 Ice-O-Matic Elevation Modular Ice Machine CIM0335HA Half Cube FA002 JD Catering Equipment Solutions Ltd

Ice-O-Matic SKU: CIM0335HA

FA002 Ice-O-Matic Elevation Modular Ice Machine CIM0335HA Half Cube FA002

£3,288.00 £5,788.00 Save £2,500

Shipping calculated at checkout

In their Denver - USA factory, Ice-O-Matic produces reliable, powerful and attractive ice machines that are used all over the world. The Ice-O-Matic CIM0335 ice machine makes up to 132kg of long lasting, high quality crystal clear ice every day. Unique feature is that this is the only ice machine that discharges the hot air from the top and from the right side, which saves you footprint and increases the installation flexibility. Main focus from Ice-O-Matic is the food safety with components in the food zone that can easily be cleaned and are even dishwasher-safe. This ice machine is available in either full-cube ice (cube size 22 x 22 x 22mm) or half-cube ice (cube size 22 x 22 x 10mm).

Elevation Ice Machine

CIM0335F/H

The new and groundbreaking Elevation Series from Ice-O-Matic is designed to simplify life.

These modular cube ice machines are easy to clean, easy to service, simple to operate, and environmentally responsible without sacrificing productivity.

The Elevation Series provides clean, dependable ice from an astonishingly user-friendly and energy-efficient machine.

We believe design simplicity equals operational excellence, and innovation goes beyond just adding bells and whistles.

Key Features

'Full Cube' or 'Half Cube' Ice

This ice machine can be ordered to produce either 'Full' (CIM0335F) or 'Half' (CIM0335H) cubes.

Energy and Environment

- Exceeds new 2018 DOE (Department of Energy) regulations.
- Up to 20% more energy efficient than other models.
- Environmentally friendly, including BPA-free plastic and recyclable parts.



High Volume Ice Production

Produces up to 132kg/24hr.

Sanitation

- Plastic Food Zone eliminates hard-to-clean nooks and crannies, allowing for effortless wipe down and easy, long-lasting sanitation.
- Built-in Agion® ensures unbeatable antimicrobial protection.
- Smart LED light indicates machine status and when cleaning is required.

Unique Dual Exhaust

Air-cooled machines are designed to discharge hot air from both the sides and top of the unit, increasing installation flexibility and reducing the potential of an obstructed exhaust.

Universal Smart HarnessTM

Universal Smart HarnessTM control board simplifies installation and servicing with better access, digital diagnostics, universal components and common configuration.

Benefits

Front-air ventilation

Our self-contained ice makers have front air ventilation meaning that it can easily be positioned undercounter without any space restrictions to the sides of the machine.

Highly Configurable

The CIM0335 can be paired with any of the following bins: B25, B40, B55, B110 & B700

Tech Specs

Dimensions

Width: 768mm

Depth: 616mm

Height: 540mm

Hydraulic

Minimum allowed supply water pressure: 1.0-4.0 bar

Maximum incoming water pressure: 4.1 bar

Minimum incoming water temperature: 4.4 °C

Maximum incoming water temperature: 38°C

Electrical

Amps Required: 16A 1 Phase

Performance

Ice Cube Style: Full/Half

Net Weight: 65.7kg

Ice Production 10°C Water 21°C Air: 132kg/24hr

Ice Production 21°C Water 32°C Air: 100kg/24hr

Components

Condensing Unit: Yes

Air Cooled Units: Yes

Integral Drain Pump: No

Please note: this is a modular ice machine - ice storage bin sold separately. If used in a hard water area, water filtration is recommended (filters sold separately).

Ice Storage Bin Options

Most Popular with this model: B25, B40, B55

Require Bin Kits to fit: B110

Upright Storage Bin: B700
