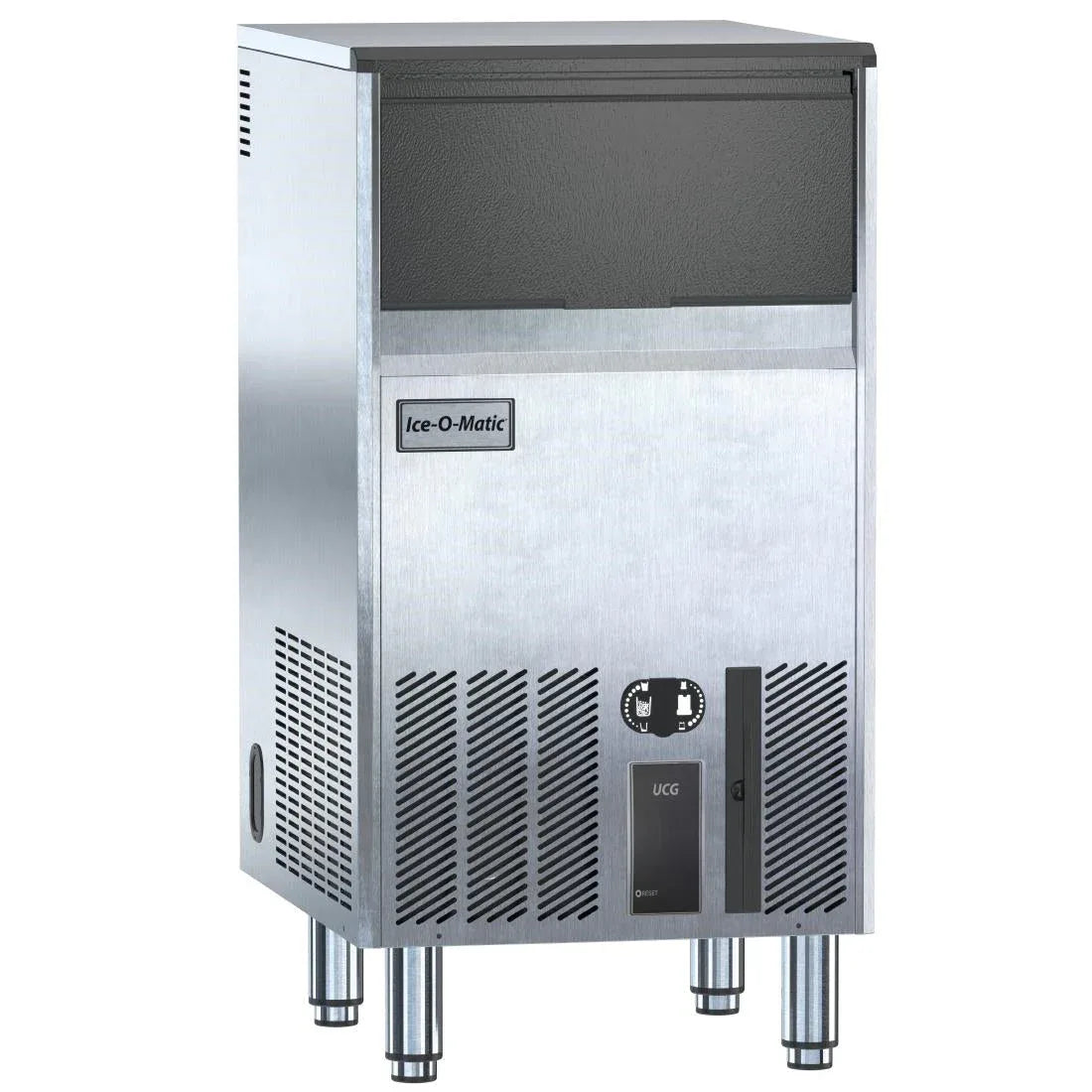

Ice-O-Matic Bistro Cube Ice Machine UCG105 FT643

Ice-O-Matic Bistro Cube Ice Machine UCG105A FT643

Ideal for any under-counter or bar application. Constructed from sturdy, corrosion-resistant stainless steel and fingerprint-proof plastic. Easily adjust the thickness of your ice from the front of the machine! Front air discharge design for compact spaces

Produces up to 48kg of ice per day with a 22Kg Ice storage bin.

Integrated Storage

Ice making and storage in one small ice machine that fits under most counters.

Sleek, Compact Design

Space-saving undercounter footprint with contemporary styling.

Superior Construction

Durable corrosion-resistant stainless steel on the inside and a durable stainless finish and industrial-grade fingerprint-proof plastic.

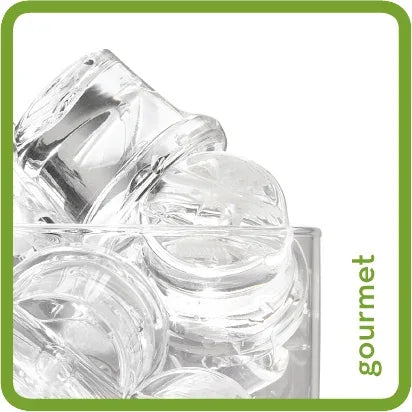

Bistrot Cubes

Crystal-clear, long-lasting, shot-style ice cubes.

Front-Panel Thermostatic Controls

Easy to access thermostatic controls for adjusting key working parameters of the machine.

Removable Air Filter

The all new removable Air filter  allows end-user to easily clean as part of the routine cleaning process.  This helps to ensure it is always operating to its optimum performance and extends the expected life-span of the machine.

Benefits

Horizontal spray technology

Each ice cube is individually produced using horizontal spray technology.

Tech Specs

Dimensions

Width: 467mm

Depth: 570mm

Height: 790mm

Hydraulic

Minimum allowed supply water pressure: 1.0-4.0 bar

Maximum incoming water pressure: 4.1 bar

Minimum incoming water temperature: 4.5 °C

Maximum incoming water temperature: 38°C

Electrical

Amps Required: 13A 1 Phase

Performance

Ice Cube Style: Shot 20g

Bin Storage: 22kg

Net Weight: 48kg

Ice Production 10°C Water 10°C Air: 48kg/24hr

Ice Production 15°C Water 21°C Air: 48kg/24hr

Components

Condensing Unit: Air / Water

Air Cooled Units: Yes

External Drain Pump: Optional
