Maidaid SKU: MaidC2035WSHR-20a Barcode: 5050000000000

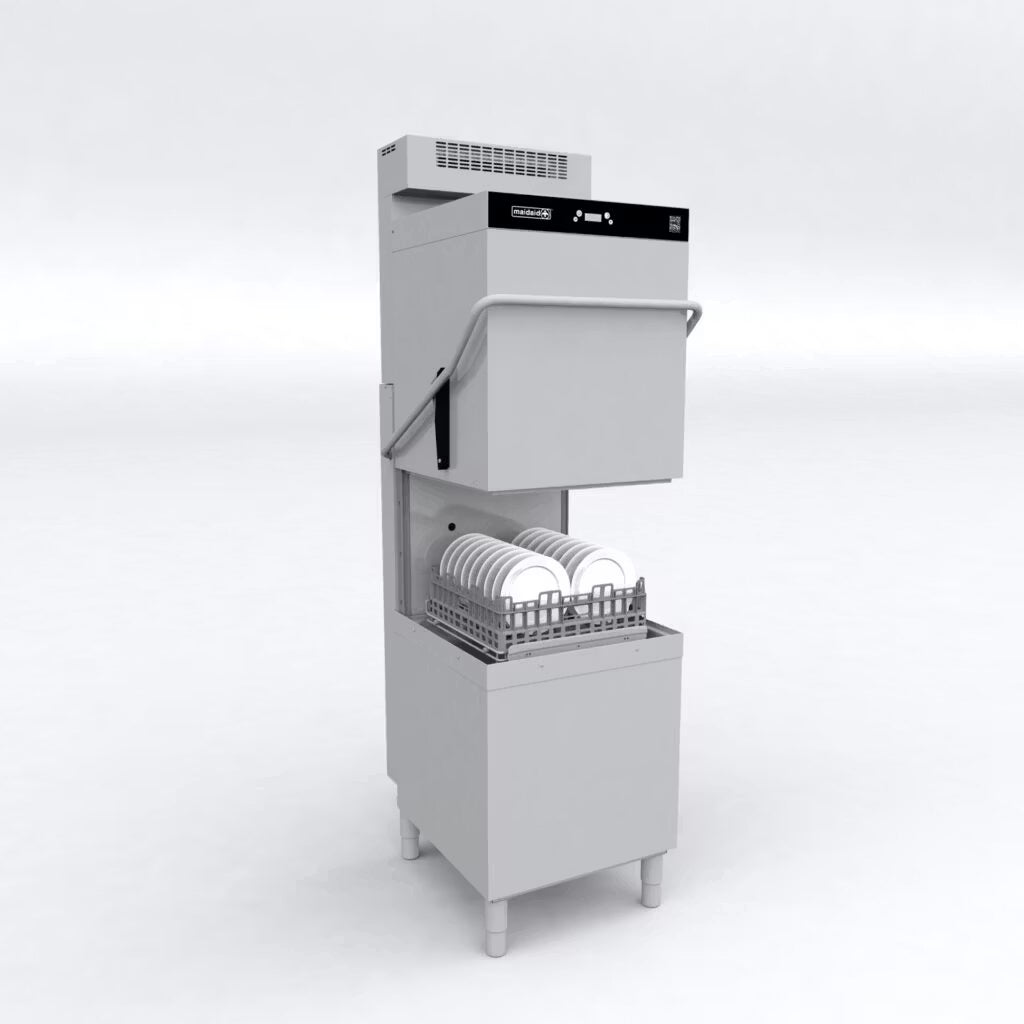

Maidaid C2035WS HR Pass Through + Heat Recovery Dishwasher

£5,615.00 £10,100.00 Save £4,485

Shipping calculated at checkout

Maidaid C2035WS HR Pass Through + heat recovery dishwasher

  • C2035WSHR with internal softener & heat recovery unit
  • Drain pump & breaktank fitted as standard
  • 500 x 500mm rack
  • Maximum useable height 435mm
  • Dimensions W640 x D745 x H2200mm
  • Height adjustable from 2200-2260mm
  • Three standard cycle time options with further options        available
  • Cycle times can be tailored to site requirements
  • Power 4.5/6.5kW
  • 20/30 Amps
  • Cannot be used with hot water supply
  • 2 year warranty
  • HEAT RECOVERY offers up to 25% less power required to heat rinse water
  • HR module supplied separately with simple bolt on instructions
  • Reduces need for extraction hood and improves working environment
  • Heat recovery, drain pump & improved continuous water softener design with increased range of water hardness settings
  • Increased usable height
  • Four button bright LED display with soft touch controls, twin traffic lights giving instant status updates & operational self-diagnostics
  • Alarms menu with hi-level information retrieval
  • Improved wash action from quick release parallel wash & rinse arm design
  • Easy lift soft glide hood system
  • Supplied with breaktank as standard
  • Three standard cycle time options with further options available
  • Cycle times can be tailored to site requirements
  • Reduced water consumption
  • Automatic self-cleaning at end of service
  • Selectable energy saving mode
  • Selectable thermostop ensures optimum rinse temperatures
  • Patented dual flow wash pump - reducing power consumption whilst retaining wash efficiency
  • Moulded wash tank for easy cleaning
  • Surface scrap tray filters supplied as standard
  • Accurate detergent and rinse aid peristaltic dosing pumps as standard
  • Supplied with one pegged rack, one open cup/glass rack & cutlery insert

Note

Tabling not included but can be added as an extra, call or email

C Range Hood C2035WSHR
Width x Depth x Height mm 640 x 745 x 2200mm (inc feet)
Feet Height 165mm to 225mm
Basket size 500 x 500mm
Maximum useable height 435mm
Door Opening 460mm
Cycle times 70/90/120 Seconds
Water consumption per cycle 2.0 Litres
Wash tank capacity 15 Litres
Phase - Options Single/3-Phase
Power Single Phase Options 4.5kW(20Amp),6.5kW(30Amp)
Power Three Phase 6.5kW(16Amp)
Detergent pump Peristaltic - Non Timed
Rinse aid pump Peristaltic - Non Timed
Drain pump Yes
Breaktank Yes
Water supply pressure 2 to 4 Bar
Body Construction Single Skin
Door/Hood Construction Single Skin
Scrap Trays Yes
Internal Rinse Booster Pump Yes
Number Of Cycles 3
Total Maximum Load(as supplied) 6.5kW(30A) Single Phase
