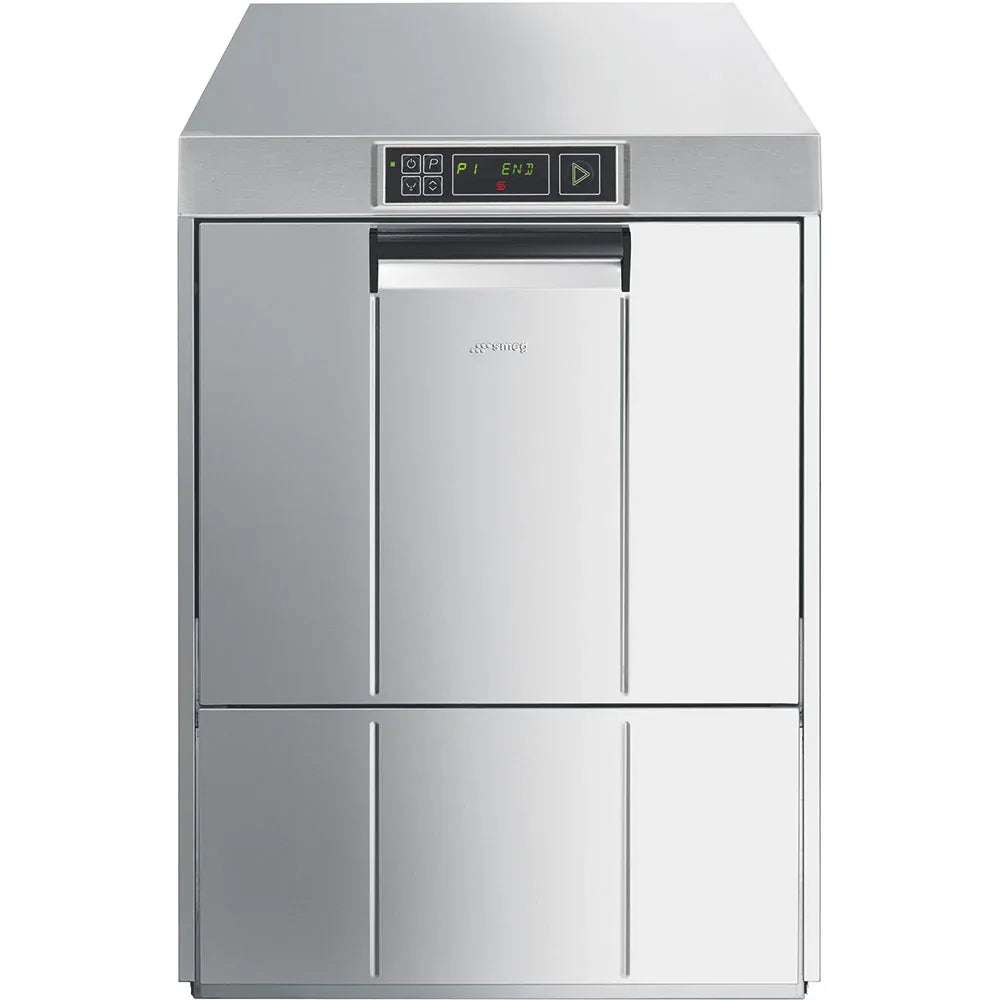

Smeg Topline range Undercounter Dishwasher, 7 Wash Programs 500x500 SPD515UK

Smeg Topline range Undercounter Dishwasher, 7 Wash Programs 500x500 SPD515UK

The Topline range is completely developed and manufactured in our Italian factory for the requirements of the food service and catering markets. A patented rinsing system ensures optimal washing results. With the combination of aesthetic design and functionality, the SMEG commercial glass and dishwashers enable a reduction in water and energy consumption, excellent washing results as well as compliance with the highest hygienic standards.

TYPE

Product Family : Dishwasher

Subfamily : Undercounter Dishwasher

Basket dimensions : 500 x 500 mm

Default power supply : 230 V~ / 20 A / 5 kW /50 Hz

Dual Heating function : Yes

Width : 600 mm

Depth : 600 mm

Height : 820 mm

Depth with door open : 1020 mm

Usable load height : 415 mm

FUNCTIONS

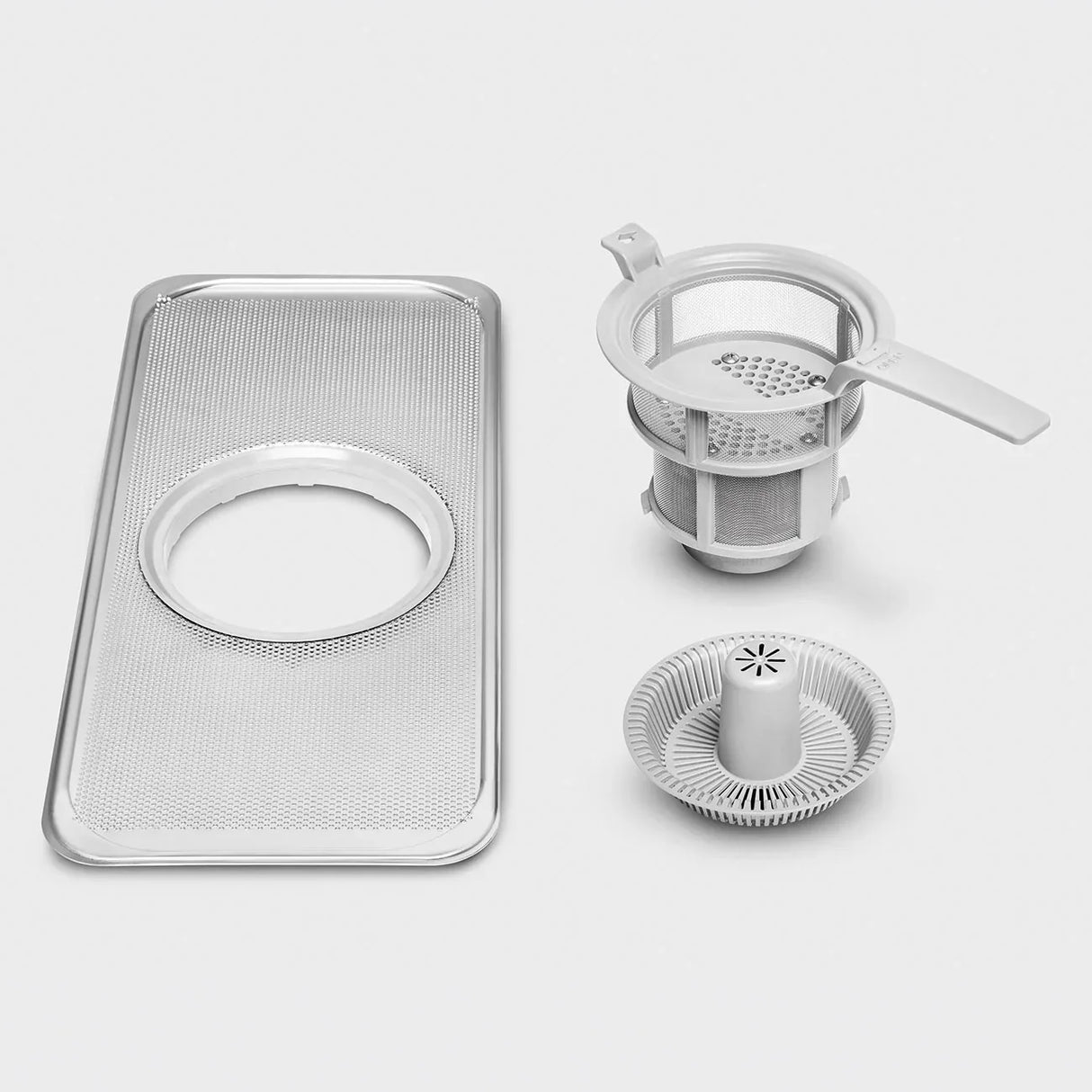

Functions : GN 1/1 trays washing, Triple filter, HTR, Door clearance 415mm

PROGRAMMES

Programs : Boiler 85°C/Tank 60°C-60"; Boiler 71°C/Tank 60°C-1'20"; Boiler 85°C/Tank 60°C-1'10" ;  Boiler 85°C/Tank 60°C-1'30"; Boiler 85°C/Tank 60°C-3'; Boiler 71°C/Tank 60°C-2'10" ; Boiler 85°C/Tank 60°C-4'10"

Drain and self cleaning cycle : Yes

Maximum baskets/hour : 60

Maximum plates/hour : 1080

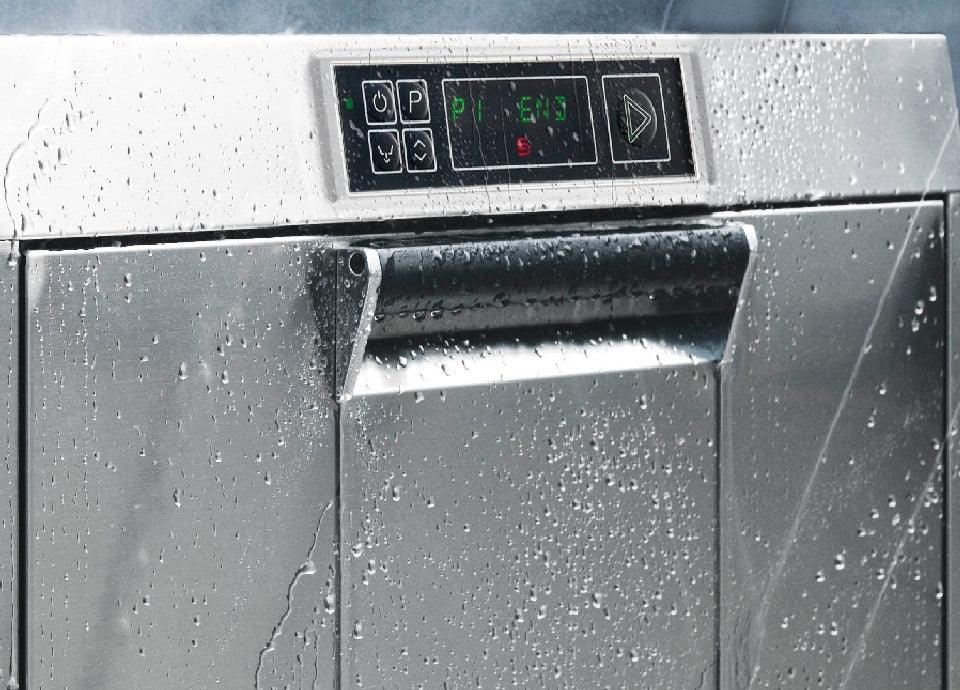

INTERFACE

Panel : Easyline 2016

Display : 8 digit

Number of buttons : 5

On/off indicator : Yes

Salt light indicator : Yes

Low rinse aid alert : Yes

Low detergent alert : Yes

Cycle progress indicator : Yes

End of cycle indicator : Yes

Manual diagnostics : Yes

CONSTRUCTION

Tank : Deep drawn

Tank construction : Double skinned

Tank material : Stainless steel AISI 304

Tank filter : Stainless steel

Door : Double skinned

Back panel : Galvanized

Counter balanced door : Yes

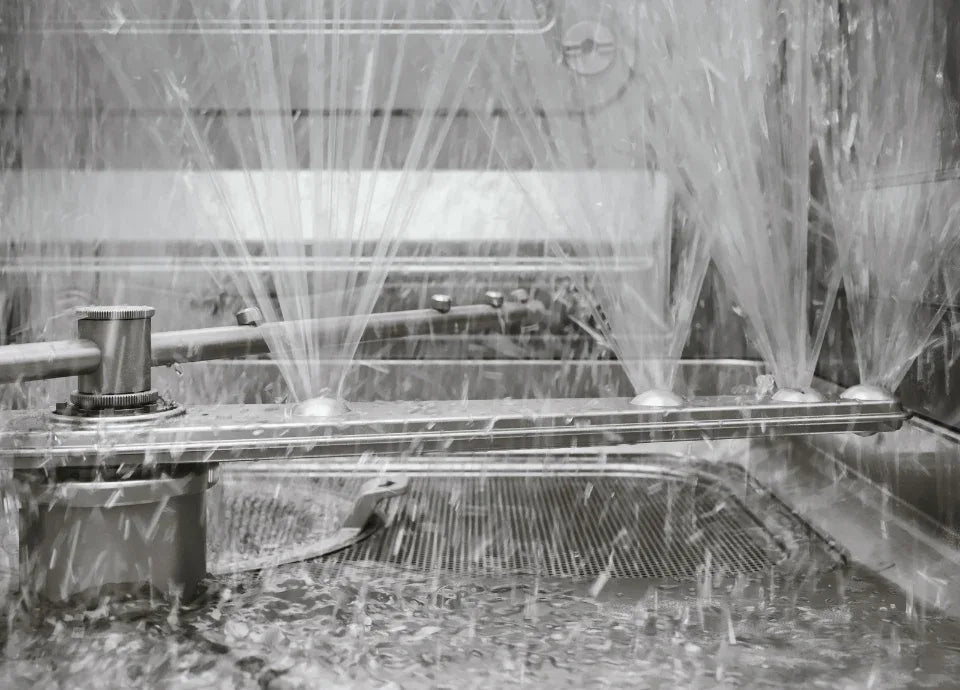

Wash arm : Stainless steel AISI 304

Rinse arm : Stainless steel AISI 304

Door gasket : On 3 sides

Rack guides : Embossed

Wash tank capacity : 11 l

Boiler capacity : 6 l

Noise level : Lpa 56,5 dBA

Protection class : IPX4

Adjustable feet : 0-15 mm

Drain max. height:600 mm

CONSUMPTION AND CONNECTIONS

Tank heating element : 2000 W

Boiler heating element : 6100 W

Wash pump : 700 W

Default connection : 5000 W

Electrical connection options : 230 V~ / 20 A / 4,5 kW / 50 Hz (NC)

Water consumption per cycle : 3,2 l

Water inlet pressure : 1-6 bar / 100-600 kPa

Warm water connection : Cold 15°C

Inlet water maximum temperature : 60°C

Max water hardness : 12°fH - 7°dH

LOGISTIC INFORMATION

Dimensions : 600x600x820 mm

Packed width : 660 mm

Packaged depth : 700 mm

Height (mm) packed : 990 mm

Dimensions of the packed product (mm) : 990 X 660 X 700

Gross weight (kg) : 67

EQUIPMENT

Detergent (red) hose length : Yes, manual

Peristaltic detergent pump : Yes, electronic control

Detergent flow rate : 1.5 l/h

Peristaltic rinse aid pump : Yes, electronic control

Rinse aid (blue) hose length : Yes, manual

Soft Start : Yes

Boiler thermostop : Yes

Wash tank thermostop : Deep drawn

Cycle counter : Yes

Chemical dosing : gr/lt

Drain pump with 3 stage filter system : Yes

Rinse pump with H.T.R. system : Rinse pump with atmospheric boiler

Break tank : Yes

Partial water exchange in the wash tank via built-in drain pump : Yes

Automatic start : Yes

Chemical level probe : Yes, optional KITSONLIV

1/1GN tray washing option : Yes
