Smeg Topline range Undercounter Dishwasher with integral softener, 7 Wash Programs 500x500 SPD515SUK

Smeg SKU: SPD515SUK

Smeg Topline range Undercounter Dishwasher with integral softener, 7 Wash Programs 500x500 SPD515SUK

£2,725.00 £5,084.00 £2,359

Shipping calculated at checkout

Smeg Topline range Undercounter Dishwasher with integral softener, 7 Wash Programs 500x500 SPD515SUK

Series -Topline
Undercounter Dishwasher
Basket dimensions - 500x500 mm
Construction - Double wall
Integral continuous water softener
Rinse pump with atmospheric boiler

The Topline range is completely developed and manufactured in our Italian factory for the requirements of the food service and catering markets. A patented rinsing system ensures optimal washing results. With the combination of aesthetic design and functionality, the SMEG commercial glass and dishwashers enable a reduction in water and energy consumption, excellent washing results as well as compliance with the highest hygienic standards.

  • Fully double skinned and insulated construction in AISI 304 stainless steel
  • Moulded deep drawn wash tank with rounded corners

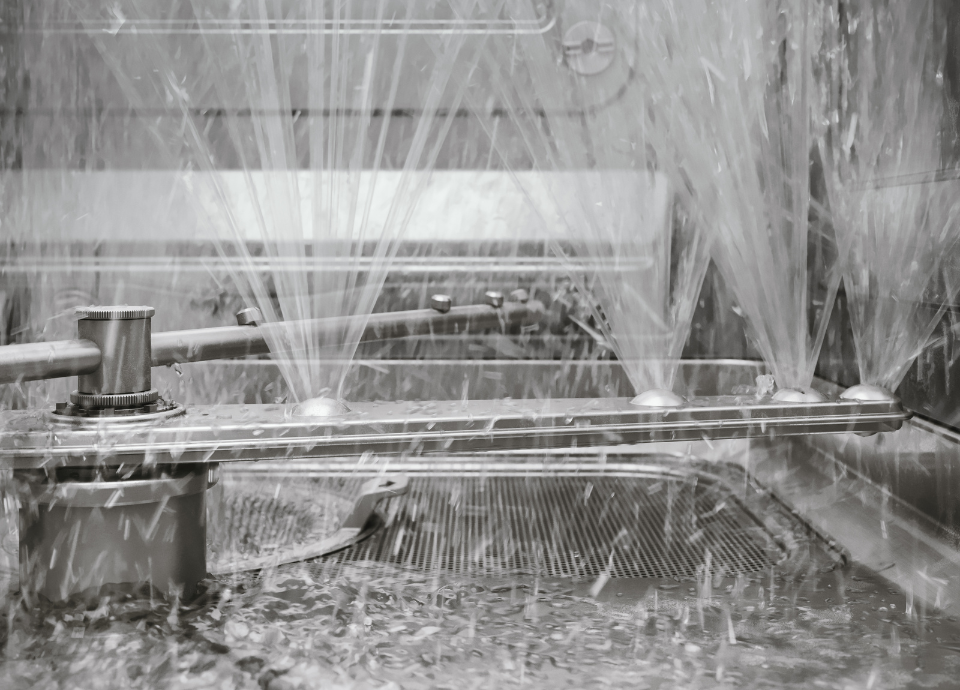

  • 2x wash arms in AISI 304 stainless steel
  • 2x rinse arms in AISI 304 stainless steel
  • Counterbalanced and insulated door with gasket
  • Usable wash height 300mm
  • Automatic partial water exchange in the wash tank via the drain pump
  • Rinse booster pump offers (HTR) rinse via atmospheric boiler

  • Interlocking 3 stage filtration system

  • Drain pump
  • WRAS compliant break tank

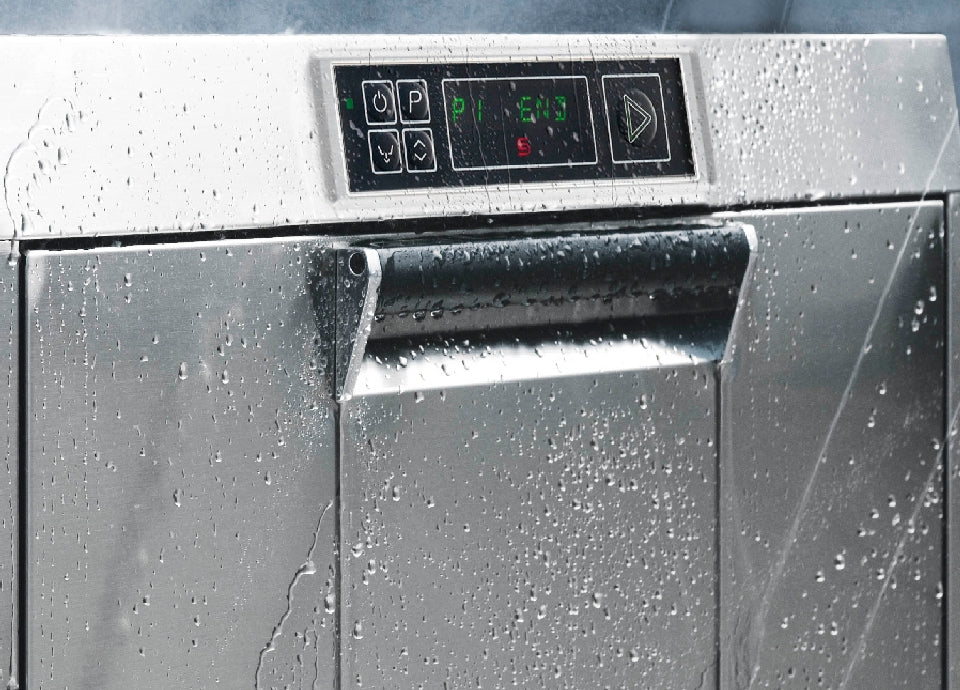

  • Fully electronic control panel with soft touch buttons
  • 7 tailored wash programs with optional freshwater and extended rinse options
  • Wash pump with soft start
  • Thermostop for guaranteeing the rinse water temperature
  • Stand-by function to limit the activity of the heating elements during periods of non-use
  • Self cleaning cycle on drain down
  • Self-diagnosis system with error messages
  • Electronically controlled peristaltic detergent and rinse aid dispenser
Feature Details
Product Family Dishwasher
Subfamily Undercounter Dishwasher
Basket dimensions 500x500 mm
Panel Easyline 2016
Default power supply 230 V~ / 30 A / 6.8 kW / 50 Hz
Dual Heating function Yes
Usable load height 400 mm
Depth with door open 1020 mm
Dimensions 600x600x822 mm
Functions GN 1/1 trays washing, 5-stage filter, HTR, Door clearance 400 mm
Programs 6 automatic programs; 1 fully programmable program; Self-cleaning programs
Program options Extra rinse; Clean water cycle
Program specifications Boiler 71°C/Tank 60°C-60"; Boiler 85°C/Tank 60°C-60"; … (various time settings)
Drain and self cleaning cycle Yes
Maximum baskets/hour 60
Maximum plates/hour 1080
Tank heating element 2000 W
Boiler heating element 6100 W
Wash pump 700 W
Default connection 5000 W
Water consumption per cycle 3.2 l
Water inlet pressure 1-6 bar / 100-600 kPa
Warm water connection 8°C
Inlet water maximum temperature 60°C
Max water hardness 12°f - 7°dH
Electrical connection options 230 V~ / 12 A / 2.7 kW / 50 Hz (NC); 230 V~ / 15 A / 3.4 kW / 50 Hz (NC); … (various options)
Display 8 digit
Number of buttons 5
On/off indicator Yes
Salt light indicator Yes
Low rinse aid alert Yes
Low detergent alert Yes
Cycle progress indicator Yes
End of cycle indicator Yes
Manual diagnostics Yes
Tank Deep drawn
Construction Double wall
Tank material Stainless steel AISI 304
Tank filter Stainless steel
Door Double skinned
Back panel Galvanized
Counter balanced door Yes
Wash arm Stainless steel AISI 304
Rinse arm Stainless steel AISI 304
Door gasket On 3 sides
Rack guides Embossed
Wash tank capacity 11 l
Boiler capacity 6.5 l
Noise level Lpa 56.5 dBA
Protection class IPX4
Adjustable feet Yes
Drain max. height 600 mm
Packed width 660 mm
Packaged depth 700 mm
Height (mm) packed 990 mm
Dimensions of the packed product (mm) 990x660x700
Gross weight (kg) 71.000
Type of packaging Carton on pallet
Packaging composition - paper & cardboard (kg) 3.042 kg
Packaging composition - polystyrene (kg) 0.665 kg
